Apple Pay™

Apple Pay™ is a digital wallet that allows customers to pay using credit or debit cards saved in their Apple Wallet. Instead of sharing card details directly with the merchant, Apple Pay generates a secure payment token representing the customer's payment information. This tokenization process helps protect sensitive card data during the transaction.

Apple Pay enables customers to perform fast and secure payments with a single interaction on websites using Safari, or in iOS and macOS applications, using any card linked to their Apple Wallet.

How Apple Pay Works with Getnet

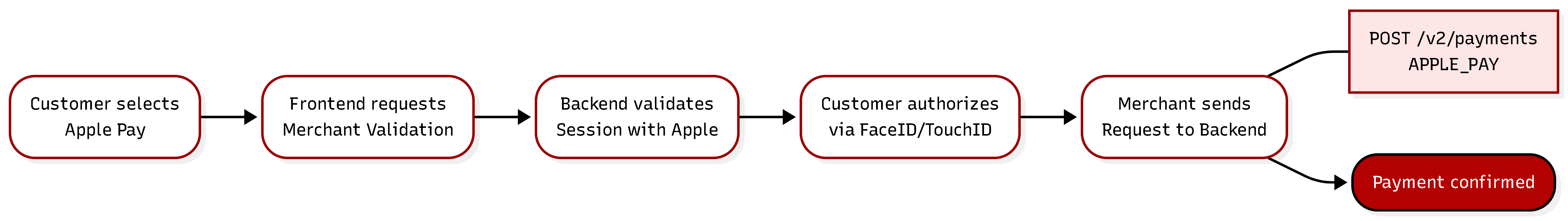

When a customer chooses Apple Pay during checkout, the following flow occurs:

The customer selects Apple Pay as the payment method.
Apple Pay returns payment data containing tokenized card credentials or an encrypted Apple Pay payment token.
The merchant sends the required Apple Pay payment data to Getnet as part of the payment request.
Getnet processes the transaction through the configured payment processor or card network.
The authorization result is returned to the merchant.

Integration Overview

To process Apple Pay payments with Getnet, the integration involves two main components:

Integrating the Apple Pay API in your application or website.
Sending the required Apple Pay payment data to Getnet for payment processing.

After integrating with Apple Pay, you can display the Apple Pay button in your checkout and request payment information from your customers.

If you offer Apple Pay as a payment method to your customers, use only official Apple Pay brand assets according to Apple's brand guidelines. Do not modify the colors, proportions, layout, or appearance of Apple Pay assets.

Include the Apple Pay Human Interface Guidelines
Include the Apple Pay Marketing Guidelines

Requirements

Before integrating Apple Pay, ensure the following:

Apple Pay payment with Getnet is available only in Brazil and Spain.
Your integration complies with the Apple Pay Acceptable Use Guidelines and Terms of Service.
Your frontend environment must be served over HTTPS to initialize Apple Pay on the Web.
Before going live, you must complete domain verification and the required certificate setup in the Apple Developer Portal.
Your backend must be able to send the required payment data to Getnet according to the selected processing scenario.

Integration Steps

Step 1: Integrate with Apple Pay

Follow Apple's official documentation to implement Apple Pay:

Web integration: https://developer.apple.com/documentation/apple_pay_on_the_web
iOS/macOS integration: https://developer.apple.com/documentation/passkit/apple_pay

This integration allows your checkout to display the Apple Pay button and request payment data from the user's Apple device or Apple Wallet.

Step 2: Configure your Apple Pay account

Before moving to production, you must configure Apple Pay in the Apple Developer Portal and coordinate the certificate setup with your Getnet account manager.

Depending on your integration model, this may include:

Create a Merchant ID — a unique identifier for your business.
Domain verification — host the apple-developer-merchantid-domain-association file provided by Apple at https://yourdomain.com/.well-known/apple-developer-merchantid-domain-association.
Payment Processing Certificate:
1. Contact your Getnet account manager to request the Apple Pay Payment Processing Certificate setup.
2. Getnet will generate and provide the Certificate Signing Request, also known as CSR, required for Apple Pay.
3. In the Apple Developer Portal, go to your Merchant ID settings and select Create Certificate under Payment Processing Certificate.
4. Upload the CSR file provided by Getnet.
5. Apple generates a .cer file.
6. Download the .cer file from the Apple Developer Portal and send it back to your Getnet account manager to complete the certificate setup.
Merchant Identity Certificate — generate this certificate to allow your server to authenticate with Apple's servers during Merchant Validation.
Confirm the supported card networks and merchant capabilities.

These steps ensure your website or application is authorized to request Apple Pay payments.

Step 3: Validate the merchant session

For Apple Pay on the Web, your frontend must perform Merchant Validation before the Apple Pay payment sheet is displayed.

The frontend receives a validationURL from Apple Pay and sends it to your backend. Your backend performs an authenticated request to Apple using the Merchant Identity Certificate and returns the merchant session to the frontend.

Step 4: Process the payment

Once the customer authorizes the payment:

Apple Pay returns payment data to the merchant.
Your system sends the required Apple Pay payment data to Getnet.
Getnet processes the transaction through the configured payment processor or card network.
Getnet returns the authorization result to the merchant.

Merchant Validation

Merchant Validation is required for Apple Pay on the Web.

Before the Apple Pay payment sheet appears, your frontend must start an Apple Pay session. The onvalidatemerchant event is triggered when the session starts.

Your frontend sends the validationURL received from Apple Pay to your backend. Your backend then performs an authenticated POST request to Apple's servers using your Merchant Identity Certificate.

Apple returns an opaque merchantSession object. Your backend must return this object to the frontend unchanged.

Backend request to Apple

Your backend must POST to the validationURL received from the frontend using a TLS connection authenticated with your Merchant Identity Certificate.

Field	Description	Example
`merchantIdentifier`	Your Apple Merchant ID.	`"merchant.com.your-store"`
`displayName`	Name shown on the Apple Pay sheet. Maximum 64 characters.	`"Your Store"`
`initiative`	Use `"web"` for Apple Pay on the Web.	`"web"`
`initiativeContext`	Fully qualified domain that hosts the checkout.	`"checkout.yourdomain.com"`

The TLS connection must present your Merchant Identity Certificate issued by Apple. Apple rejects calls that are not authenticated by this certificate.

Note: Each merchantSession is valid for a short period and is single-use. Do not cache or reuse merchant sessions.

Frontend handler

javascript

session.onvalidatemerchant = async (event) => {
  // Send event.validationURL to your backend.
  // The backend completes the authenticated request to Apple
  // and returns Apple's merchantSession object.
  const merchantSession = await callYourBackend(event.validationURL);

  session.completeMerchantValidation(merchantSession);
};

javascript

session.onvalidatemerchant = async (event) => {
  // Send event.validationURL to your backend.
  // The backend completes the authenticated request to Apple
  // and returns Apple's merchantSession object.
  const merchantSession = await callYourBackend(event.validationURL);

  session.completeMerchantValidation(merchantSession);
};

Backend example

javascript

import https from 'https';
import fs from 'fs';

async function validateMerchant(validationURL) {
  const cert = fs.readFileSync('./merchant_identity.pem');
  const key = fs.readFileSync('./merchant_identity.key');

  const body = JSON.stringify({
    merchantIdentifier: 'merchant.com.your-store',
    displayName: 'Your Store',
    initiative: 'web',
    initiativeContext: 'checkout.yourdomain.com'
  });

  const response = await fetch(validationURL, {
    method: 'POST',
    body,
    headers: { 'Content-Type': 'application/json' },
    agent: new https.Agent({ cert, key })
  });

  return response.json();
}

javascript

import https from 'https';
import fs from 'fs';

async function validateMerchant(validationURL) {
  const cert = fs.readFileSync('./merchant_identity.pem');
  const key = fs.readFileSync('./merchant_identity.key');

  const body = JSON.stringify({
    merchantIdentifier: 'merchant.com.your-store',
    displayName: 'Your Store',
    initiative: 'web',
    initiativeContext: 'checkout.yourdomain.com'
  });

  const response = await fetch(validationURL, {
    method: 'POST',
    body,
    headers: { 'Content-Type': 'application/json' },
    agent: new https.Agent({ cert, key })
  });

  return response.json();
}

Apple Pay payment data and Getnet processing models

Apple Pay returns payment data that can be processed in different ways depending on the merchant architecture, PCI scope, certificate management strategy, and payment processing requirements.

The Apple Pay payment data defines what Apple returns to the merchant. The Getnet processing model defines how the merchant sends that data to Getnet.

These are different concepts and should not be mixed:

Concept	Where it is configured or used	Examples
Apple Pay payment data	Apple Pay frontend and token response	Device Account Number, payment cryptogram, encrypted `pkPaymentToken`
Getnet processing model	Server-side payment request sent to Getnet	DAN card data flow, Cryptogram card data flow, Authorization Token flow

Use the sections below to understand the Apple Pay payment data and the Getnet processing models available for each integration.

Device Account Number

Apple Pay may provide a Device Account Number, also known as DAN, after the Apple Pay payment token is decrypted by the merchant or merchant-side processor.

The DAN is a tokenized representation of the customer's card stored in Apple Wallet. It is not the customer's real PAN.

When using this data, the server-side payload sent to Getnet may follow one of these processing models:

DAN card data flow: the merchant or merchant-side processor decrypts the Apple Pay token, extracts the DAN and expiration date, and sends them to Getnet as structured card fields.
DAN card data flow with 3DS: the merchant or merchant-side processor decrypts the Apple Pay token, extracts the DAN and expiration date, performs 3DS authentication when required, and sends the card and 3DS fields to Getnet.

If 3D Secure authentication is required by local regulation, issuer rules, merchant configuration, or transaction risk, an additional 3DS flow may be triggered.

3DS for DAN transactions

For DAN transactions, 3D Secure may be required depending on the country, merchant configuration, issuer rules, or transaction risk.

For Spain, 3DS/SCA is required. For Brazil, 3DS may be optional depending on merchant configuration and risk rules.

To process a DAN transaction with 3DS, merchants must follow the standard Getnet 3DS authentication flow before creating or confirming the payment. After authentication is completed, send the 3DS authentication fields in the payment request, such as eci, xid, ucaf, tdsver, and tdsdsxid, according to the Create a 3DS Authenticated Payment documentation.

If 3DS is required and the authentication data is not provided, the transaction may be declined or returned as pending for additional authentication.

Payment cryptogram

Apple Pay may provide tokenized device card credentials with a payment cryptogram after the Apple Pay payment token is decrypted by the merchant or merchant-side processor.

The payment cryptogram, such as TAVV or the applicable network cryptogram, is generated during the payment process and provides stronger authentication evidence because it is generated for the tokenized device credential.

When using this data, the server-side payload sent to Getnet may follow this processing model:

Cryptogram card data flow: the merchant or merchant-side processor decrypts the Apple Pay token, extracts the DAN, expiration date, payment cryptogram, and ECI, and sends these values to Getnet as structured payment fields.

Additional 3D Secure authentication is generally not required for this flow, unless required by regulation, issuer rules, merchant configuration, or transaction risk.

Authorization Token flow

Authorization Token is a Getnet processing model used when the merchant sends the Apple Pay payment token to Getnet instead of decrypting the token and sending card data fields separately.

Use this flow when your backend sends the Apple Pay payment token to Getnet in data.payment.wallet.authorization_token.

In this flow, extract the pkPaymentToken returned by Apple Pay, serialize it exactly as returned, encode it in Base64, and send the encoded value in data.payment.wallet.authorization_token.

Getnet processes the token and extracts the payment data required for authorization.

Important: Apple Pay's Authorization Token must be encoded in Base64. Do not decrypt, change, trim, or remove any field from the token content before encoding it.

Do not mix models in the same request. If you send data.payment.wallet.authorization_token, do not also send card.number, card.expiration_month, card.expiration_year, tokenization.cryptogram, or tokenization.eci.

Choosing a processing model

Merchants can choose the processing model that best fits their integration architecture, PCI scope, certificate management strategy, and payment processing requirements.

Criteria	Recommended processing model
You want Getnet to process the Apple Pay token and do not want to decrypt the token in your environment.	Authorization Token flow
You can decrypt Apple Pay tokens server-side and operate within the required PCI-DSS scope.	DAN card data flow or Cryptogram card data flow
You need to send a device-generated payment cryptogram as structured fields.	Cryptogram card data flow
You need to process DAN with a separate 3DS authentication flow.	DAN card data flow with 3DS
You need to process SDWO transactions in Brazil.	SDWO card data flow or SDWO Authorization Token flow

If unsure, start with Authorization Token flow, because Getnet processes the Apple Pay token and the merchant does not send card or tokenization fields separately.

Decrypting the Apple Pay payment token

The DAN card data flow and Cryptogram card data flow require the merchant or merchant-side processor to decrypt the Apple Pay payment token before sending data to Getnet.

Apple Pay does not return the DAN or payment cryptogram in plaintext directly to the frontend. These values are available only after the Apple Pay payment token is decrypted.

Decryption uses the Payment Processing Certificate private key configured for the merchant. After decrypting the token, extract the required fields from the decrypted payload and map them to the Getnet payment request.

Apple Pay decrypted field	Getnet field	Notes
`applicationPrimaryAccountNumber`	`data.payment.card.number`	Device Account Number, also known as DAN. Do not send the customer's real PAN.
`applicationExpirationDate`	`data.payment.card.expiration_year`, `data.payment.card.expiration_month`	Returned as `YYMMDD`. Use the first two characters for `expiration_year` and the next two characters for `expiration_month`.
`paymentData.onlinePaymentCryptogram`	`data.payment.tokenization.cryptogram`	Payment cryptogram generated for the Apple Pay transaction. Send the value exactly as returned after decryption.
`paymentData.eciIndicator`	`data.payment.tokenization.eci` or `data.payment.eci`	Electronic Commerce Indicator associated with the transaction.

PCI scope: Decrypting the Apple Pay token brings tokenized card credentials into your environment. The decryption service must operate within the appropriate PCI-DSS scope. If this is not feasible, use the Authorization Token flow.

For the full decrypted token schema, refer to Apple's Payment Token Format Reference.

Payment acceptance

Merchants can process Apple Pay payments using multiple Getnet backend scenarios, including DAN card data flow, Cryptogram card data flow, Authorization Token flow, and SDWO-specific transactions.

You must define the payment capabilities and card networks you accept in your Apple Pay request according to the methods supported by your integration.

Apple Pay data	Credential type	3DS requirement	Supported countries
Device Account Number	Tokenized card credential associated with Apple Wallet	Required in Spain. Optional in Brazil depending on merchant configuration and transaction risk.	Brazil and Spain
Payment cryptogram	Tokenized device card credential with payment cryptogram	Generally not required, unless required by regulation, issuer rules, merchant configuration, or transaction risk.	Brazil and Spain
Apple Pay payment token	Encrypted `pkPaymentToken` returned by Apple Pay	Handled according to token content and configuration.	Brazil and Spain

Cards

Cards available for the transaction.

Type	Spain	Brazil
Mastercard	✅	✅
Visa	✅	✅

You must define the card networks you accept in supportedNetworks, based on the networks supported by your integration.

Attribute	Type	Description	Example
`merchantCapabilities`	Array	Payment capabilities supported by the merchant.	`["supports3DS"]`
`supportedNetworks`	Array	Card networks supported by Apple Pay and Getnet.	`["masterCard", "visa"]`

The following is an example of how to support the available card networks:

json

{
  "merchantCapabilities": ["supports3DS"],
  "supportedNetworks": ["masterCard", "visa"]
}

json

{
  "merchantCapabilities": ["supports3DS"],
  "supportedNetworks": ["masterCard", "visa"]
}

Billing address

Note: Request billing address only when required for authorization, fraud prevention, AVS, or local compliance. Asking for additional information may increase checkout friction.

Use requiredBillingContactFields to request billing address fields from Apple Pay when required for authorization, fraud prevention, AVS, or local compliance.

Attribute	Type	Description	Example
`requiredBillingContactFields`	Array	Billing contact fields to request from the customer.	`["postalAddress", "name"]`
`requiredShippingContactFields`	Array	Shipping contact fields to request from the customer, when applicable.	`["postalAddress", "name", "phone", "email"]`

json

{
  "requiredBillingContactFields": ["postalAddress", "name"],
  "requiredShippingContactFields": ["postalAddress", "name", "phone", "email"]
}

json

{
  "requiredBillingContactFields": ["postalAddress", "name"],
  "requiredShippingContactFields": ["postalAddress", "name", "phone", "email"]
}

Handling the Apple Pay payload

When a customer pays with Apple Pay, Apple returns payment data in the PKPaymentToken object.

For the Authorization Token flow, the Apple Pay payment token must be extracted from:

text

payment.token

text

payment.token

The merchant must then:

Extract the pkPaymentToken returned by Apple Pay.
Serialize the token exactly as returned by Apple Pay.
Encode the serialized token in Base64.
Send the encoded value in data.payment.wallet.authorization_token in the Getnet payment request.

Do not decrypt, change, trim, or remove any field from the token content before encoding it.

Encoding note: The tokenization.cryptogram field used in the Cryptogram card data flow is sent as extracted after token decryption. By contrast, the authorization_token field used in the Authorization Token flow must contain the Base64-encoded Apple Pay payment token.

Example of Base64-encoding the pkPaymentToken in Node.js:

javascript

const authorizationToken = Buffer
  .from(JSON.stringify(pkPaymentToken), 'utf8')
  .toString('base64');

javascript

const authorizationToken = Buffer
  .from(JSON.stringify(pkPaymentToken), 'utf8')
  .toString('base64');

Example of the Getnet payment request using the Authorization Token flow:

json

{
  "data": {
    "amount": 500,
    "currency": "EUR",
    "payment": {
      "payment_method": "CREDIT",
      "transaction_type": "FULL",
      "number_installments": 1,
      "wallet": {
        "id": "103",
        "type": "10",
        "authorization_token": "<BASE64_ENCODED_APPLE_PAY_PAYMENT_TOKEN>"
      }
    }
  }
}

json

{
  "data": {
    "amount": 500,
    "currency": "EUR",
    "payment": {
      "payment_method": "CREDIT",
      "transaction_type": "FULL",
      "number_installments": 1,
      "wallet": {
        "id": "103",
        "type": "10",
        "authorization_token": "<BASE64_ENCODED_APPLE_PAY_PAYMENT_TOKEN>"
      }
    }
  }
}

Integrate via Global API

To integrate Apple Pay via the Global API, ensure the following prerequisites are met:

Generate an access token through the Authentication endpoint.
Wallet configuration: Use the correct wallet.id, wallet.type, and wallet.tag according to the selected Apple Pay processing scenario.
PCI Compliance: Scenarios involving card objects, such as DAN card data flow and Cryptogram card data flow, require the merchant to operate within the appropriate PCI-DSS scope for handling tokenized card data. If the merchant uses the Authorization Token flow, Getnet processes the Apple Pay token and the merchant must not send card or tokenization fields separately.
HTTPS: Your frontend environment must be served over a secure connection to initialize Apple Pay on the Web.

Wallet field configuration

Use the table below to identify the correct wallet configuration for each scenario.

Scenario	`data.payment.wallet.id`	`data.payment.wallet.type`	`data.payment.wallet.tag`
Standard Apple Pay — DAN card data flow	`103`	`10`	Not required
Standard Apple Pay — Cryptogram card data flow	`103`	`10`	Not required
Authorization Token flow	`103`	`10`	Not required
SDWO card data flow	`103`	`55`	Not required
SDWO Authorization Token flow	`103`	`55`	`AP`

Important: For standard Apple Pay transactions, use wallet.id = 103 and wallet.type = 10.
For SDWO card data transactions in Brazil, use wallet.id = 103 and wallet.type = 55.
For SDWO Authorization Token transactions, use wallet.id = 103, wallet.type = 55, and wallet.tag = AP.

Characteristics

Capability	Details
Customer Experience	One-Tap — Fast checkout via Face ID, Touch ID, or passcode.
Settlement	Real-time — Transactions are authorized and settled according to card network rules.
Confirmation	Synchronous — The API provides an immediate `APPROVED`, `DECLINED`, or intermediate status such as `PENDING` when additional authentication is required.
Device Support	Limited to compatible Apple devices using Safari browser or iOS/macOS apps.

Available Features

Use the matrix below to confirm the supported operations for Apple Pay in the Global API.

Features	Supported Countries	Purchases	Refunds	Partial Refunds	Pre-authorizations	3DS	SDWO
Direct / API	Brazil and Spain	✅	✅	✅	✅	✅	Brazil only

Integration Flow

The lifecycle of an Apple Pay transaction begins with the frontend requesting Apple Pay payment data and ends with the server-side authorization call.

Transaction Flow Diagram

The following diagram illustrates the end-to-end payment flow when a customer completes a purchase using Apple Pay and the payment is processed through Getnet.

Flow Description

The customer selects Apple Pay as the payment method at checkout.
The merchant application starts the Apple Pay session.
For Apple Pay on the Web, the merchant performs Merchant Validation.
Apple validates the merchant and returns a merchant session.
The Apple Pay sheet is displayed to the customer with their saved payment methods.
The customer selects a card and authorizes the payment using Face ID, Touch ID, or passcode.
Apple Pay generates and returns payment data to the merchant.
The merchant sends the required Apple Pay payment data to Getnet.
Getnet prepares the transaction according to the selected processing scenario.
Getnet sends the authorization request to the card network or configured payment processor.
The processor returns the authorization result.
Getnet forwards the response to the merchant, which then displays the final payment result to the customer.

Server-Side Implementation Scenarios

The following scenarios detail the JSON structures required based on the data provided by Apple Pay and the selected Getnet processing scenario.

Important: Device Account Number, payment cryptogram, and pkPaymentToken are Apple Pay payment data concepts. They are not Getnet server-side scenario names.
In the Getnet payment request, merchants can choose the processing model that best fits their integration architecture, PCI scope, certificate management strategy, and payment processing requirements: DAN card data flow, Cryptogram card data flow, Authorization Token flow, SDWO card data flow, or SDWO Authorization Token flow.

DAN card data flow

Use this server-side scenario when your backend decrypts the Apple Pay payment token and sends the Device Account Number, also known as DAN, to Getnet as structured card fields.

This flow is used when the backend payload sent to Getnet is a structured card payment request.

In this model, the merchant or merchant-side processor decrypts the Apple Pay payment token, extracts the DAN and expiration date, and sends these values to Getnet.

If 3D Secure authentication is required, the merchant must complete the 3DS authentication flow before creating or confirming the payment, and send the required 3DS fields in the payment request.

Attribute	Type	Description	Example
`data.payment.card`	Object	Card data set.	--
`data.payment.card.number`	String	Device Account Number, also known as DAN. Do not send the customer's real PAN.	`4012001037141112`
`data.payment.card.expiration_month`	String	Two-digit card expiry month.	`12`
`data.payment.card.expiration_year`	String	Two-digit card expiry year.	`25`
`data.payment.wallet`	Object	Wallet data set.	--
`data.payment.wallet.id`	String	Wallet identifier. For Apple Pay, always use `103`.	`103`
`data.payment.wallet.type`	String	Wallet type. For standard Apple Pay transactions, use `10`.	`10`
`data.payment.eci`	String	Electronic Commerce Indicator used for 3DS authentication. Optional for transactions without 3DS.	`02`

Important: For Spain, 3DS authentication is required. In Brazil, 3DS is optional depending on merchant configuration, issuer rules, and transaction risk.

Example of request

json

{
  "idempotency_key": "63c7f8ee-51a6-470d-bb76-ef762b62bfb7",
  "request_id": "daac03dc-73db-453f-9bea-b1391669d5d3",
  "order_id": "ORDER-10187383",
  "data": {
    "amount": 500,
    "currency": "BRL",
    "customer_id": "02587894152",
    "payment": {
      "payment_id": "{{$guid}}",
      "payment_method": "DEBIT",
      "transaction_type": "FULL",
      "number_installments": 1,
      "card": {
        "number": "4012001037141112",
        "expiration_month": "09",
        "expiration_year": "30"
      },
      "wallet": {
        "id": "103",
        "type": "10"
      }
    },
    "additional_data": {
      "customer": {
        "phone_number": "5511999999999",
        "email": "customer@example.com",
        "document_number": "50506468000",
        "document_type": "CPF",
        "name": "Jose da Silva",
        "billing_address": {
          "street": "Rua A",
          "number": "1",
          "district": "Centro",
          "city": "Sao Paulo",
          "state": "SP",
          "country": "BR",
          "postal_code": "05781000",
          "complement": "N/A"
        }
      }
    }
  }
}

json

{
  "idempotency_key": "63c7f8ee-51a6-470d-bb76-ef762b62bfb7",
  "request_id": "daac03dc-73db-453f-9bea-b1391669d5d3",
  "order_id": "ORDER-10187383",
  "data": {
    "amount": 500,
    "currency": "BRL",
    "customer_id": "02587894152",
    "payment": {
      "payment_id": "{{$guid}}",
      "payment_method": "DEBIT",
      "transaction_type": "FULL",
      "number_installments": 1,
      "card": {
        "number": "4012001037141112",
        "expiration_month": "09",
        "expiration_year": "30"
      },
      "wallet": {
        "id": "103",
        "type": "10"
      }
    },
    "additional_data": {
      "customer": {
        "phone_number": "5511999999999",
        "email": "customer@example.com",
        "document_number": "50506468000",
        "document_type": "CPF",
        "name": "Jose da Silva",
        "billing_address": {
          "street": "Rua A",
          "number": "1",
          "district": "Centro",
          "city": "Sao Paulo",
          "state": "SP",
          "country": "BR",
          "postal_code": "05781000",
          "complement": "N/A"
        }
      }
    }
  }
}

Example of response

json

{
  "idempotency_key": "e61674fa-f50c-46e0-a7e4-3adb048d423f",
  "seller_id": "a9c99f03-025c-4261-a9f5-de73ef593623",
  "payment_id": "9b1deb4d-3b7d-4bad-9bdd-2b0d7b3dcb6d",
  "order_id": "ORDER-10187383",
  "amount": "500",
  "currency": "BRL",
  "status": "APPROVED",
  "payment_method": "DEBIT",
  "received_at": "2026-04-08T17:14:54.000Z",
  "transaction_id": "MCC00KJ50408",
  "original_transaction_id": "MCC00KJ50408",
  "authorized_at": "2026-04-08T17:14:55.717Z",
  "reason_code": "00",
  "reason_message": "captured",
  "acquirer": "GETNET",
  "soft_descriptor": "EC TESTES PAGONXT - NA",
  "brand": "VISA",
  "authorization_code": "810172",
  "acquirer_transaction_id": "000454195865"
}

json

{
  "idempotency_key": "e61674fa-f50c-46e0-a7e4-3adb048d423f",
  "seller_id": "a9c99f03-025c-4261-a9f5-de73ef593623",
  "payment_id": "9b1deb4d-3b7d-4bad-9bdd-2b0d7b3dcb6d",
  "order_id": "ORDER-10187383",
  "amount": "500",
  "currency": "BRL",
  "status": "APPROVED",
  "payment_method": "DEBIT",
  "received_at": "2026-04-08T17:14:54.000Z",
  "transaction_id": "MCC00KJ50408",
  "original_transaction_id": "MCC00KJ50408",
  "authorized_at": "2026-04-08T17:14:55.717Z",
  "reason_code": "00",
  "reason_message": "captured",
  "acquirer": "GETNET",
  "soft_descriptor": "EC TESTES PAGONXT - NA",
  "brand": "VISA",
  "authorization_code": "810172",
  "acquirer_transaction_id": "000454195865"
}

DAN card data flow with 3DS

Use this server-side scenario when your backend decrypts the Apple Pay payment token, sends the DAN as structured card data, and includes 3DS authentication fields.

For DAN transactions that require 3D Secure authentication, complete the 3DS authentication flow first as described in the Create a 3DS Authenticated Payment documentation. Then include the 3DS result fields in the payment request.

Attribute	Type	Description	Example
`data.payment.xid`	String	MPI identifier for each authenticated transaction.	`yFNXIadjt0mEsP5ob44vQPd0Zbg=`
`data.payment.ucaf`	String	UCAF authentication code.	`B5kBAHNwQAAAAYdqmGESdiZwFVg=`
`data.payment.eci`	String	Electronic Commerce Indicator.	`05`
`data.payment.tdsver`	String	3DS version.	`2.3.1`
`data.payment.tdsdsxid`	String	3DS Server transaction identifier.	`9c2410c8-07c7-4e07-ac76-185e620970cf`

Note: Send the 3DS fields returned by your authentication provider according to the card network and authentication result.

Example of DAN with 3DS request

json

{
  "idempotency_key": "63c7f8ee-51a6-470d-bb76-ef762b62bfb7",
  "request_id": "daac03dc-73db-453f-9bea-b1391669d5d3",
  "order_id": "ORDER-10187383",
  "data": {
    "amount": 500,
    "currency": "EUR",
    "customer_id": "12345678Z",
    "payment": {
      "payment_id": "173f9e8d-4e0b-4503-8016-5cdafba89bee",
      "payment_method": "CREDIT",
      "transaction_type": "FULL",
      "number_installments": 1,
      "xid": "yFNXIadjt0mEsP5ob44vQPd0Zbg=",
      "eci": "05",
      "tdsver": "2.3.1",
      "tdsdsxid": "9c2410c8-07c7-4e07-ac76-185e620970cf",
      "card": {
        "number": "4012001037141112",
        "expiration_month": "09",
        "expiration_year": "30"
      },
      "wallet": {
        "id": "103",
        "type": "10"
      }
    },
    "additional_data": {
      "customer": {
        "phone_number": "+34911234567",
        "email": "customer@example.com",
        "document_number": "12345678Z",
        "document_type": "DNI",
        "name": "Jose da Silva",
        "billing_address": {
          "street": "Calle Mayor",
          "number": "10",
          "district": "Centro",
          "city": "Madrid",
          "state": "Madrid",
          "country": "ES",
          "postal_code": "28013",
          "complement": "N/A"
        }
      }
    }
  }
}

json

{
  "idempotency_key": "63c7f8ee-51a6-470d-bb76-ef762b62bfb7",
  "request_id": "daac03dc-73db-453f-9bea-b1391669d5d3",
  "order_id": "ORDER-10187383",
  "data": {
    "amount": 500,
    "currency": "EUR",
    "customer_id": "12345678Z",
    "payment": {
      "payment_id": "173f9e8d-4e0b-4503-8016-5cdafba89bee",
      "payment_method": "CREDIT",
      "transaction_type": "FULL",
      "number_installments": 1,
      "xid": "yFNXIadjt0mEsP5ob44vQPd0Zbg=",
      "eci": "05",
      "tdsver": "2.3.1",
      "tdsdsxid": "9c2410c8-07c7-4e07-ac76-185e620970cf",
      "card": {
        "number": "4012001037141112",
        "expiration_month": "09",
        "expiration_year": "30"
      },
      "wallet": {
        "id": "103",
        "type": "10"
      }
    },
    "additional_data": {
      "customer": {
        "phone_number": "+34911234567",
        "email": "customer@example.com",
        "document_number": "12345678Z",
        "document_type": "DNI",
        "name": "Jose da Silva",
        "billing_address": {
          "street": "Calle Mayor",
          "number": "10",
          "district": "Centro",
          "city": "Madrid",
          "state": "Madrid",
          "country": "ES",
          "postal_code": "28013",
          "complement": "N/A"
        }
      }
    }
  }
}

Example of DAN with 3DS response

json

{
  "idempotency_key": "63c7f8ee-51a6-470d-bb76-ef762b62bfb7",
  "seller_id": "a9c99f03-025c-4261-a9f5-de73ef593623",
  "payment_id": "9b1deb4d-3b7d-4bad-9bdd-2b0d7b3dcb6d",
  "order_id": "ORDER-10187383",
  "amount": "500",
  "currency": "EUR",
  "status": "APPROVED",
  "payment_method": "CREDIT",
  "received_at": "2026-04-08T17:14:54.000Z",
  "transaction_id": "MCC00KJ50408",
  "original_transaction_id": "MCC00KJ50408",
  "authorized_at": "2026-04-08T17:14:55.717Z",
  "reason_code": "00",
  "reason_message": "Transaction authorized (payment/preauthorization)",
  "acquirer": "GETNET",
  "brand": "VISA",
  "authorization_code": "810172",
  "acquirer_transaction_id": "000454195865"
}

json

{
  "idempotency_key": "63c7f8ee-51a6-470d-bb76-ef762b62bfb7",
  "seller_id": "a9c99f03-025c-4261-a9f5-de73ef593623",
  "payment_id": "9b1deb4d-3b7d-4bad-9bdd-2b0d7b3dcb6d",
  "order_id": "ORDER-10187383",
  "amount": "500",
  "currency": "EUR",
  "status": "APPROVED",
  "payment_method": "CREDIT",
  "received_at": "2026-04-08T17:14:54.000Z",
  "transaction_id": "MCC00KJ50408",
  "original_transaction_id": "MCC00KJ50408",
  "authorized_at": "2026-04-08T17:14:55.717Z",
  "reason_code": "00",
  "reason_message": "Transaction authorized (payment/preauthorization)",
  "acquirer": "GETNET",
  "brand": "VISA",
  "authorization_code": "810172",
  "acquirer_transaction_id": "000454195865"
}

SDWO — Staged Digital Wallet Operator

SDWO is a payment framework typically used by digital wallet providers where the wallet acts as an intermediary between the cardholder and the final recipient.

It facilitates two stages: funding the account and transferring funds to a sub-merchant. This ensures transparency of the end receiver for payment networks.

For SDWO transactions in Brazil, the fields inside the wallet object must be filled as follows:

data.payment.wallet.id must be set to 103
data.payment.wallet.type must be set to 55

Attribute	Type	Description	Example
`data.payment.card`	Object	Card data set.	--
`data.payment.card.number`	String	Device Account Number, also known as DAN.	`4012001037141112`
`data.payment.card.expiration_month`	String	Two-digit card expiry month.	`12`
`data.payment.card.expiration_year`	String	Two-digit card expiry year.	`25`
`data.payment.wallet`	Object	Wallet data set.	--
`data.payment.wallet.id`	String	Wallet identifier. For Apple Pay, always use `103`.	`103`
`data.payment.wallet.type`	String	Wallet type for SDWO transactions. Always use `55`.	`55`
`data.payment.wallet.fund_transfer`	Object	Fund transfer data required for SDWO transactions.	--

Note: SDWO fund transfer fields follow the SDWO-specific format and may use different value domains than the standard customer object.

Example of SDWO request

json

{
  "idempotency_key": "{{$guid}}",
  "request_id": "{{$guid}}",
  "order_id": "{{$guid}}",
  "link_id": "{{$guid}}",
  "data": {
    "amount": 1200,
    "currency": "BRL",
    "payment": {
      "payment_id": "{{$guid}}",
      "payment_method": "CREDIT",
      "save_card_data": false,
      "transaction_type": "FULL",
      "number_installments": 1,
      "dynamic_mcc": 6051,
      "card": {
        "number": "4012001037141112",
        "expiration_month": "12",
        "expiration_year": "29"
      },
      "wallet": {
        "type": "55",
        "id": "103",
        "fund_transfer": {
          "pay_action": "FT",
          "receiver": {
            "account_number": "9999999999999995",
            "account_type": "00",
            "first_name": "Jane",
            "middle_name": "T",
            "last_name": "Smith",
            "addr_street": "1 Main ST",
            "addr_city": "SAO PAULO",
            "addr_state": "SP",
            "addr_country": "BRA",
            "addr_postal_code": "1408000",
            "nationality": "BRA",
            "phone": "5511977778888",
            "date_of_birth": "19901230",
            "id_type": "03",
            "id_num": "12345678900000"
          },
          "sender": {
            "account_number": "9999999999999995",
            "account_type": "00",
            "first_name": "Jane",
            "middle_name": "T",
            "last_name": "Smith",
            "addr_street": "1 Main ST",
            "addr_city": "SAO PAULO",
            "addr_state": "SP",
            "addr_country": "BRA",
            "addr_postal_code": "1408000",
            "nationality": "BRA",
            "phone": "5511977778888",
            "date_of_birth": "19901230",
            "id_type": "03",
            "id_num": "12345678900000"
          }
        }
      }
    }
  }
}

json

{
  "idempotency_key": "{{$guid}}",
  "request_id": "{{$guid}}",
  "order_id": "{{$guid}}",
  "link_id": "{{$guid}}",
  "data": {
    "amount": 1200,
    "currency": "BRL",
    "payment": {
      "payment_id": "{{$guid}}",
      "payment_method": "CREDIT",
      "save_card_data": false,
      "transaction_type": "FULL",
      "number_installments": 1,
      "dynamic_mcc": 6051,
      "card": {
        "number": "4012001037141112",
        "expiration_month": "12",
        "expiration_year": "29"
      },
      "wallet": {
        "type": "55",
        "id": "103",
        "fund_transfer": {
          "pay_action": "FT",
          "receiver": {
            "account_number": "9999999999999995",
            "account_type": "00",
            "first_name": "Jane",
            "middle_name": "T",
            "last_name": "Smith",
            "addr_street": "1 Main ST",
            "addr_city": "SAO PAULO",
            "addr_state": "SP",
            "addr_country": "BRA",
            "addr_postal_code": "1408000",
            "nationality": "BRA",
            "phone": "5511977778888",
            "date_of_birth": "19901230",
            "id_type": "03",
            "id_num": "12345678900000"
          },
          "sender": {
            "account_number": "9999999999999995",
            "account_type": "00",
            "first_name": "Jane",
            "middle_name": "T",
            "last_name": "Smith",
            "addr_street": "1 Main ST",
            "addr_city": "SAO PAULO",
            "addr_state": "SP",
            "addr_country": "BRA",
            "addr_postal_code": "1408000",
            "nationality": "BRA",
            "phone": "5511977778888",
            "date_of_birth": "19901230",
            "id_type": "03",
            "id_num": "12345678900000"
          }
        }
      }
    }
  }
}

Example of SDWO response

json

{
  "idempotency_key": "855294c3-61d0-4da9-a3e4-f6038b92cd76",
  "seller_id": "a9c99f03-025c-4251-a9f5-de73ef593523",
  "payment_id": "4eaab005-5cdc-41eb-8598-6e36aaa1bb85",
  "order_id": "cc44fe82-2712-453c-948b-52e346216e43",
  "amount": "1200",
  "currency": "BRL",
  "status": "APPROVED",
  "payment_method": "CREDIT",
  "received_at": "2026-05-12T18:04:21.000Z",
  "transaction_id": "016132078327616",
  "original_transaction_id": "016132078327616",
  "authorized_at": "2026-05-12T18:04:32.953Z",
  "reason_code": "00",
  "reason_message": "captured",
  "acquirer": "GETNET",
  "soft_descriptor": "EC TESTES PAGONXT - NA",
  "brand": "VISA",
  "authorization_code": "030603",
  "acquirer_transaction_id": "000421185086"
}

json

{
  "idempotency_key": "855294c3-61d0-4da9-a3e4-f6038b92cd76",
  "seller_id": "a9c99f03-025c-4251-a9f5-de73ef593523",
  "payment_id": "4eaab005-5cdc-41eb-8598-6e36aaa1bb85",
  "order_id": "cc44fe82-2712-453c-948b-52e346216e43",
  "amount": "1200",
  "currency": "BRL",
  "status": "APPROVED",
  "payment_method": "CREDIT",
  "received_at": "2026-05-12T18:04:21.000Z",
  "transaction_id": "016132078327616",
  "original_transaction_id": "016132078327616",
  "authorized_at": "2026-05-12T18:04:32.953Z",
  "reason_code": "00",
  "reason_message": "captured",
  "acquirer": "GETNET",
  "soft_descriptor": "EC TESTES PAGONXT - NA",
  "brand": "VISA",
  "authorization_code": "030603",
  "acquirer_transaction_id": "000421185086"
}

SDWO with 3DS Transactions

For transactions using 3DS, please follow all the steps provided in the Create a 3DS Authenticated Payment document.

Important: When creating SDWO requests, the fields inside the wallet object must be filled as follows:

data.payment.wallet.id must be set to 103

data.payment.wallet.type must be set to 55

The table below shows the fields required for transactions with 3DS.

Attribute	Type	Description	Example
`data.payment.xid`	String	MPI identifier for each authenticated transaction.	`yFNXIadjt0mEsP5ob44vQPd0Zbg=`
`data.payment.ucaf`	String	Authentication code encrypted by the card network.	`B5kBAHNwQAAAAYdqmGESdiZwFVg=`
`data.payment.eci`	String	Electronic Commerce Indicator used for 3DS authentication.	`5`
`data.payment.tdsver`	String	3DS version used in authentication.	`2.3.1`
`data.payment.tdsdsxid`	String	3DS Server transaction identifier.	`9c2410c8-07c7-4e07-ac76-185e620970cf`

Example of SDWO with 3DS request

json

{
  "idempotency_key": "{{$guid}}",
  "request_id": "{{$guid}}",
  "order_id": "{{$guid}}",
  "link_id": "{{$guid}}",
  "data": {
    "amount": 1000,
    "currency": "BRL",
    "payment": {
      "payment_id": "{{$guid}}",
      "payment_method": "CREDIT",
      "save_card_data": false,
      "transaction_type": "FULL",
      "number_installments": 1,
      "dynamic_mcc": 6051,
      "xid": "dyZb2stPifAatR7aaQufcNBgshE=",
      "ucaf": "j0V7ephXEz91CBEEwhFpACkAAAA=",
      "eci": "2",
      "tdsver": "2.3.1",
      "tdsdsxid": "790cb396-97b4-5a03-8000-0000104ec36b",
      "card": {
        "number": "5555555555554444",
        "expiration_month": "12",
        "expiration_year": "32"
      },
      "wallet": {
        "type": "55",
        "id": "103",
        "fund_transfer": {
          "pay_action": "FT",
          "receiver": {
            "account_number": "9999999999999995",
            "account_type": "00",
            "first_name": "Jane",
            "middle_name": "T",
            "last_name": "Smith",
            "addr_street": "1 Main ST",
            "addr_city": "SAO PAULO",
            "addr_state": "SP",
            "addr_country": "BRA",
            "addr_postal_code": "1408000",
            "nationality": "BRA",
            "phone": "5511977778888",
            "date_of_birth": "19901230",
            "id_type": "03",
            "id_num": "12345678900000"
          },
          "sender": {
            "account_number": "9999999999999995",
            "account_type": "00",
            "first_name": "Jane",
            "middle_name": "T",
            "last_name": "Smith",
            "addr_street": "1 Main ST",
            "addr_city": "SAO PAULO",
            "addr_state": "SP",
            "addr_country": "BRA",
            "addr_postal_code": "1408000",
            "nationality": "BRA",
            "phone": "5511977778888",
            "date_of_birth": "19901230",
            "id_type": "03",
            "id_num": "12345678900000"
          }
        }
      }
    }
  }
}

json

{
  "idempotency_key": "{{$guid}}",
  "request_id": "{{$guid}}",
  "order_id": "{{$guid}}",
  "link_id": "{{$guid}}",
  "data": {
    "amount": 1000,
    "currency": "BRL",
    "payment": {
      "payment_id": "{{$guid}}",
      "payment_method": "CREDIT",
      "save_card_data": false,
      "transaction_type": "FULL",
      "number_installments": 1,
      "dynamic_mcc": 6051,
      "xid": "dyZb2stPifAatR7aaQufcNBgshE=",
      "ucaf": "j0V7ephXEz91CBEEwhFpACkAAAA=",
      "eci": "2",
      "tdsver": "2.3.1",
      "tdsdsxid": "790cb396-97b4-5a03-8000-0000104ec36b",
      "card": {
        "number": "5555555555554444",
        "expiration_month": "12",
        "expiration_year": "32"
      },
      "wallet": {
        "type": "55",
        "id": "103",
        "fund_transfer": {
          "pay_action": "FT",
          "receiver": {
            "account_number": "9999999999999995",
            "account_type": "00",
            "first_name": "Jane",
            "middle_name": "T",
            "last_name": "Smith",
            "addr_street": "1 Main ST",
            "addr_city": "SAO PAULO",
            "addr_state": "SP",
            "addr_country": "BRA",
            "addr_postal_code": "1408000",
            "nationality": "BRA",
            "phone": "5511977778888",
            "date_of_birth": "19901230",
            "id_type": "03",
            "id_num": "12345678900000"
          },
          "sender": {
            "account_number": "9999999999999995",
            "account_type": "00",
            "first_name": "Jane",
            "middle_name": "T",
            "last_name": "Smith",
            "addr_street": "1 Main ST",
            "addr_city": "SAO PAULO",
            "addr_state": "SP",
            "addr_country": "BRA",
            "addr_postal_code": "1408000",
            "nationality": "BRA",
            "phone": "5511977778888",
            "date_of_birth": "19901230",
            "id_type": "03",
            "id_num": "12345678900000"
          }
        }
      }
    }
  }
}

Example of SDWO with 3DS response

json

{
  "idempotency_key": "c26015f2-a412-4ddb-a126-6742b6acdc70",
  "seller_id": "a9c99f03-025c-4251-a9f5-de73ef593523",
  "payment_id": "5d11ac09-3343-4654-80f7-28a9f46dc25d",
  "order_id": "6753f130-c8fd-4faf-8e5a-424d777aedaa",
  "amount": "1000",
  "currency": "BRL",
  "status": "APPROVED",
  "payment_method": "CREDIT",
  "received_at": "2026-05-12T17:39:32.000Z",
  "transaction_id": "MCC00CVWL0512",
  "original_transaction_id": "MCC00CVWL0512",
  "authorized_at": "2026-05-12T17:39:33.281Z",
  "reason_code": "00",
  "reason_message": "captured",
  "acquirer": "GETNET",
  "soft_descriptor": "EC TESTES PAGONXT - NA",
  "brand": "MASTERCARD",
  "authorization_code": "108850",
  "acquirer_transaction_id": "000932182031",
  "eci": "2"
}

json

{
  "idempotency_key": "c26015f2-a412-4ddb-a126-6742b6acdc70",
  "seller_id": "a9c99f03-025c-4251-a9f5-de73ef593523",
  "payment_id": "5d11ac09-3343-4654-80f7-28a9f46dc25d",
  "order_id": "6753f130-c8fd-4faf-8e5a-424d777aedaa",
  "amount": "1000",
  "currency": "BRL",
  "status": "APPROVED",
  "payment_method": "CREDIT",
  "received_at": "2026-05-12T17:39:32.000Z",
  "transaction_id": "MCC00CVWL0512",
  "original_transaction_id": "MCC00CVWL0512",
  "authorized_at": "2026-05-12T17:39:33.281Z",
  "reason_code": "00",
  "reason_message": "captured",
  "acquirer": "GETNET",
  "soft_descriptor": "EC TESTES PAGONXT - NA",
  "brand": "MASTERCARD",
  "authorization_code": "108850",
  "acquirer_transaction_id": "000932182031",
  "eci": "2"
}

The response follows the same structure as the standard payment response. If additional authentication is required, the transaction may return PENDING with 3DS challenge data.

Cryptogram card data flow

Use this server-side scenario when your backend decrypts the Apple Pay payment token and sends tokenized card credentials with a payment cryptogram to Getnet as structured payment fields.

In this model, the merchant or merchant-side processor extracts the Device Account Number, also known as DAN, together with the expiration date, payment cryptogram, and ECI, and sends these values to Getnet.

If you use the Authorization Token flow, do not send card.number, card.expiration_month, card.expiration_year, tokenization.cryptogram, or tokenization.eci separately. In the Authorization Token flow, Getnet processes the Apple Pay token sent in data.payment.wallet.authorization_token.

The payment cryptogram is a dynamically generated cryptographic value that enables payment networks to validate the authenticity of the transaction.

Attribute	Type	Description	Example
`data.payment.card`	Object	Card data set containing the tokenized card credentials extracted from Apple Pay.	--
`data.payment.card.number`	String	Device Account Number, also known as DAN. Do not send the customer's real PAN.	`4761120000000148`
`data.payment.card.expiration_month`	String	Two-digit expiry month of the tokenized card credential.	`12`
`data.payment.card.expiration_year`	String	Two-digit expiry year of the tokenized card credential.	`25`
`data.payment.wallet`	Object	Wallet data set.	--
`data.payment.wallet.id`	String	Wallet identifier. For Apple Pay, always use `103`.	`103`
`data.payment.wallet.type`	String	Wallet type. For standard Apple Pay transactions, use `10`.	`10`
`data.payment.tokenization`	Object	Tokenization data set containing cryptographic values extracted from Apple Pay.	--
`data.payment.tokenization.cryptogram`	String	Payment cryptogram generated for the Apple Pay transaction. Send the value exactly as extracted after token decryption. Do not generate, alter, or reuse cryptograms.	`AgAAAAAABk4DWZ4C28yUQAAAAAA=`
`data.payment.tokenization.eci`	String	Electronic Commerce Indicator associated with the tokenized payment.	`02`

Example of request

json

{
  "idempotency_key": "f6e5cb13-a5fe-46f9-b467-29bd13c29e59",
  "request_id": "d808b53a-aa47-4484-8c99-cbe83624474c",
  "order_id": "izgyekkmb8sd",
  "data": {
    "amount": 500,
    "currency": "EUR",
    "customer_id": "12345678Z",
    "payment": {
      "payment_id": "izgyekkmb8sd",
      "payment_method": "CREDIT",
      "transaction_type": "FULL",
      "number_installments": 1,
      "card": {
        "number": "4761120000000148",
        "expiration_month": "12",
        "expiration_year": "49"
      },
      "wallet": {
        "id": "103",
        "type": "10"
      },
      "tokenization": {
        "cryptogram": "AgAAAAAABk4DWZ4C28yUQAAAAAA=",
        "eci": "02"
      }
    },
    "additional_data": {
      "customer": {
        "phone_number": "+34911234567",
        "email": "customer@example.com",
        "document_number": "12345678Z",
        "document_type": "DNI",
        "name": "Jose da Silva",
        "billing_address": {
          "street": "Calle Mayor",
          "number": "10",
          "district": "Centro",
          "city": "Madrid",
          "state": "Madrid",
          "country": "ES",
          "postal_code": "28013",
          "complement": "N/A"
        }
      }
    }
  }
}

json

{
  "idempotency_key": "f6e5cb13-a5fe-46f9-b467-29bd13c29e59",
  "request_id": "d808b53a-aa47-4484-8c99-cbe83624474c",
  "order_id": "izgyekkmb8sd",
  "data": {
    "amount": 500,
    "currency": "EUR",
    "customer_id": "12345678Z",
    "payment": {
      "payment_id": "izgyekkmb8sd",
      "payment_method": "CREDIT",
      "transaction_type": "FULL",
      "number_installments": 1,
      "card": {
        "number": "4761120000000148",
        "expiration_month": "12",
        "expiration_year": "49"
      },
      "wallet": {
        "id": "103",
        "type": "10"
      },
      "tokenization": {
        "cryptogram": "AgAAAAAABk4DWZ4C28yUQAAAAAA=",
        "eci": "02"
      }
    },
    "additional_data": {
      "customer": {
        "phone_number": "+34911234567",
        "email": "customer@example.com",
        "document_number": "12345678Z",
        "document_type": "DNI",
        "name": "Jose da Silva",
        "billing_address": {
          "street": "Calle Mayor",
          "number": "10",
          "district": "Centro",
          "city": "Madrid",
          "state": "Madrid",
          "country": "ES",
          "postal_code": "28013",
          "complement": "N/A"
        }
      }
    }
  }
}

The cryptogram value above is shown only as an example. In production, send the cryptogram value exactly as extracted from the decrypted Apple Pay payment token. Do not generate, alter, reuse, or hardcode cryptograms.

Example of response

json

{
  "idempotency_key": "2e7b86be-201d-4a82-a8f9-7102500faf78",
  "seller_id": "7c966bb3-a8dc-4428-aa95-61081719ed80",
  "payment_id": "omczgrvmxdt5",
  "order_id": "omczgrvmxdt5",
  "amount": "500",
  "currency": "EUR",
  "status": "APPROVED",
  "payment_method": "CREDIT",
  "received_at": "2026-02-23T15:10:52.664Z",
  "original_transaction_id": "",
  "authorized_at": "2026-02-23T15:10:53.688Z",
  "reason_code": "00",
  "reason_message": "Transaction authorized (payment/preauthorization)",
  "acquirer": "GETNET",
  "brand": "UNKNOWN"
}

json

{
  "idempotency_key": "2e7b86be-201d-4a82-a8f9-7102500faf78",
  "seller_id": "7c966bb3-a8dc-4428-aa95-61081719ed80",
  "payment_id": "omczgrvmxdt5",
  "order_id": "omczgrvmxdt5",
  "amount": "500",
  "currency": "EUR",
  "status": "APPROVED",
  "payment_method": "CREDIT",
  "received_at": "2026-02-23T15:10:52.664Z",
  "original_transaction_id": "",
  "authorized_at": "2026-02-23T15:10:53.688Z",
  "reason_code": "00",
  "reason_message": "Transaction authorized (payment/preauthorization)",
  "acquirer": "GETNET",
  "brand": "UNKNOWN"
}

Note: In sandbox environments, the brand field may be returned as UNKNOWN depending on the test token configuration.

Authorization Token flow

The Authorization Token flow is a Getnet processing model used when the merchant sends the Apple Pay payment token to Getnet instead of decrypting the token and sending card data or tokenization data as separate fields.

When a customer pays with Apple Pay, Apple returns an encrypted pkPaymentToken containing the payment data.

In this model, the merchant does not send card.number, card.expiration_month, card.expiration_year, tokenization.cryptogram, or tokenization.eci as separate fields. Instead, the merchant must extract the pkPaymentToken returned by Apple Pay, serialize it exactly as returned, encode it in Base64, and send the encoded value in data.payment.wallet.authorization_token.

Getnet processes the authorization_token and extracts the payment data required for authorization.

Important: Apple Pay's Authorization Token must be encoded in Base64. Do not decrypt, change, trim, or remove any field from the token content before encoding it.

Attribute	Type	Description	Required
`idempotency_key`	String	Unique identifier to prevent duplicate charges.	Yes
`order_id`	String	Merchant reference ID used for reconciliation.	Yes
`request_id`	String	Trace identifier for idempotency audits and support follow-up.	Recommended
`data.amount`	Number	Transaction amount in cents.	Yes
`data.currency`	String	ISO currency code used in the transaction.	Yes
`data.customer`	Object	Customer details such as name, email, phone, document, and billing address. Required only when requested by Getnet or by the applicable risk, compliance, or antifraud configuration.	Conditional
`data.payment.payment_method`	String	Payment method used for the transaction.	Yes
`data.payment.transaction_type`	String	Defines how the transaction is processed. Examples: `FULL`, `INSTALL_NO_INTEREST`, `INSTALL_WITH_INTEREST`.	Yes
`data.payment.number_installments`	Number	Number of installments. Use `1` for a single payment.	Yes
`data.additional_data.device`	Object	Device information used for risk analysis or antifraud checks when applicable, such as `ip_address`, `device_id`, and `finger_print`.	Conditional
`data.payment.wallet`	Object	Wallet data set.	Yes
`data.payment.wallet.id`	String	Wallet identifier. Use `103` for Apple Pay.	Yes
`data.payment.wallet.type`	String	Wallet type. Use `10` for standard Apple Pay Authorization Token transactions or `55` for SDWO Authorization Token transactions.	Conditional
`data.payment.wallet.tag`	String	Wallet tag. Required only for SDWO Authorization Token transactions. Use `AP`.	Conditional
`data.payment.wallet.authorization_token`	String	Base64-encoded Apple Pay payment token. Send the token content exactly as returned by Apple Pay, encoded in Base64, without decrypting, changing, trimming, or removing any field.	Yes

Depending on the risk, compliance, or antifraud service enabled for the merchant, additional customer and device information may be requested. When required, send the applicable fields below.

Object / Field	Description
`customer.first_name`	Customer's first name.
`customer.last_name`	Customer's last name.
`customer.email`	Customer email address.
`customer.phone_number`	Phone number in international format.
`customer.document_type`	Document type, such as CPF, DNI, or equivalent.
`customer.document_number`	Document number without punctuation.
`customer.billing_address.street`	Street name.
`customer.billing_address.number`	Address number.
`customer.billing_address.district`	District or neighbourhood.
`customer.billing_address.city`	City.
`customer.billing_address.state`	State or province.
`customer.billing_address.country`	Country code.
`customer.billing_address.postal_code`	Postal or ZIP code.
`additional_data.device.ip_address`	Customer's IP address.
`additional_data.device.device_id`	Device fingerprint session ID.
`additional_data.device.finger_print`	Fingerprint hash generated by the antifraud script.

Example of request

json

{
  "idempotency_key": "4c3cbdc2-b41e-4e1c-b7fe-90ed10abd9bb",
  "request_id": "4802c01b-5aee-4962-a4f0-cff50439fda0",
  "order_id": "izgyekkmb8sd",
  "data": {
    "amount": 500,
    "currency": "EUR",
    "customer_id": "12345678Z",
    "payment": {
      "payment_id": "izgyekkmb8sd",
      "payment_method": "CREDIT",
      "transaction_type": "FULL",
      "number_installments": 1,
      "wallet": {
        "id": "103",
        "type": "10",
        "authorization_token": "<BASE64_ENCODED_APPLE_PAY_PAYMENT_TOKEN>"
      }
    },
    "additional_data": {
      "customer": {
        "first_name": "Jose",
        "last_name": "da Silva",
        "phone_number": "+34911234567",
        "email": "customer@example.com",
        "document_number": "12345678Z",
        "document_type": "DNI",
        "billing_address": {
          "street": "Calle Mayor",
          "number": "10",
          "district": "Centro",
          "city": "Madrid",
          "state": "Madrid",
          "country": "ES",
          "postal_code": "28013",
          "complement": "N/A"
        }
      },
      "device": {
        "ip_address": "192.0.2.1",
        "device_id": "{{$guid}}",
        "finger_print": "<DEVICE_FINGERPRINT>"
      }
    }
  }
}

json

{
  "idempotency_key": "4c3cbdc2-b41e-4e1c-b7fe-90ed10abd9bb",
  "request_id": "4802c01b-5aee-4962-a4f0-cff50439fda0",
  "order_id": "izgyekkmb8sd",
  "data": {
    "amount": 500,
    "currency": "EUR",
    "customer_id": "12345678Z",
    "payment": {
      "payment_id": "izgyekkmb8sd",
      "payment_method": "CREDIT",
      "transaction_type": "FULL",
      "number_installments": 1,
      "wallet": {
        "id": "103",
        "type": "10",
        "authorization_token": "<BASE64_ENCODED_APPLE_PAY_PAYMENT_TOKEN>"
      }
    },
    "additional_data": {
      "customer": {
        "first_name": "Jose",
        "last_name": "da Silva",
        "phone_number": "+34911234567",
        "email": "customer@example.com",
        "document_number": "12345678Z",
        "document_type": "DNI",
        "billing_address": {
          "street": "Calle Mayor",
          "number": "10",
          "district": "Centro",
          "city": "Madrid",
          "state": "Madrid",
          "country": "ES",
          "postal_code": "28013",
          "complement": "N/A"
        }
      },
      "device": {
        "ip_address": "192.0.2.1",
        "device_id": "{{$guid}}",
        "finger_print": "<DEVICE_FINGERPRINT>"
      }
    }
  }
}

Example of response

json

{
  "idempotency_key": "ae010d29-997f-4b8b-9890-32ab6c927a85",
  "seller_id": "7c966bb3-a8dc-4428-aa95-61081719ed80",
  "payment_id": "c7pk1y8j97o0",
  "order_id": "c7pk1y8j97o0",
  "amount": "500",
  "currency": "EUR",
  "status": "PENDING",
  "payment_method": "CREDIT",
  "received_at": "2026-02-23T15:16:37.589Z",
  "original_transaction_id": "",
  "authorized_at": "2026-02-23T15:16:38.853Z",
  "reason_code": "00",
  "reason_message": "Transaction is pending of EMV3DS authentication",
  "acquirer": "GETNET",
  "brand": "UNKNOWN",
  "additional_data": {
    "_links": [
      {
        "rel": "3ds_html",
        "type": "POST",
        "href": "https://example.com/3ds/challenge",
        "creq": "<3DS_CREQ_VALUE>"
      }
    ]
  }
}

json

{
  "idempotency_key": "ae010d29-997f-4b8b-9890-32ab6c927a85",
  "seller_id": "7c966bb3-a8dc-4428-aa95-61081719ed80",
  "payment_id": "c7pk1y8j97o0",
  "order_id": "c7pk1y8j97o0",
  "amount": "500",
  "currency": "EUR",
  "status": "PENDING",
  "payment_method": "CREDIT",
  "received_at": "2026-02-23T15:16:37.589Z",
  "original_transaction_id": "",
  "authorized_at": "2026-02-23T15:16:38.853Z",
  "reason_code": "00",
  "reason_message": "Transaction is pending of EMV3DS authentication",
  "acquirer": "GETNET",
  "brand": "UNKNOWN",
  "additional_data": {
    "_links": [
      {
        "rel": "3ds_html",
        "type": "POST",
        "href": "https://example.com/3ds/challenge",
        "creq": "<3DS_CREQ_VALUE>"
      }
    ]
  }
}

SDWO Authorization Token flow

For SDWO Authorization Token transactions, the merchant sends the Base64-encoded Apple Pay payment token together with the SDWO fund transfer data.

Important: Only for SDWO Authorization Token transactions:

data.payment.wallet.id must be set to 103

data.payment.wallet.type must be set to 55

data.payment.wallet.tag must be set to AP

Example of SDWO Authorization Token request

json

{
  "idempotency_key": "{{$guid}}",
  "request_id": "{{$guid}}",
  "order_id": "{{$guid}}",
  "link_id": "{{$guid}}",
  "data": {
    "amount": 1200,
    "currency": "BRL",
    "payment": {
      "payment_id": "{{$guid}}",
      "payment_method": "CREDIT",
      "save_card_data": false,
      "transaction_type": "FULL",
      "number_installments": 1,
      "dynamic_mcc": 6051,
      "wallet": {
        "type": "55",
        "id": "103",
        "tag": "AP",
        "authorization_token": "<BASE64_ENCODED_APPLE_PAY_PAYMENT_TOKEN>",
        "fund_transfer": {
          "pay_action": "FT",
          "receiver": {
            "account_number": "9999999999999995",
            "account_type": "00",
            "first_name": "Jane",
            "middle_name": "T",
            "last_name": "Smith",
            "addr_street": "1 Main ST",
            "addr_city": "SAO PAULO",
            "addr_state": "SP",
            "addr_country": "BRA",
            "addr_postal_code": "1408000",
            "nationality": "BRA",
            "phone": "5511977778888",
            "date_of_birth": "19901230",
            "id_type": "03",
            "id_num": "12345678900000"
          },
          "sender": {
            "account_number": "9999999999999995",
            "account_type": "00",
            "first_name": "Jane",
            "middle_name": "T",
            "last_name": "Smith",
            "addr_street": "1 Main ST",
            "addr_city": "SAO PAULO",
            "addr_state": "SP",
            "addr_country": "BRA",
            "addr_postal_code": "1408000",
            "nationality": "BRA",
            "phone": "5511977778888",
            "date_of_birth": "19901230",
            "id_type": "03",
            "id_num": "12345678900000"
          }
        }
      }
    }
  }
}

json

{
  "idempotency_key": "{{$guid}}",
  "request_id": "{{$guid}}",
  "order_id": "{{$guid}}",
  "link_id": "{{$guid}}",
  "data": {
    "amount": 1200,
    "currency": "BRL",
    "payment": {
      "payment_id": "{{$guid}}",
      "payment_method": "CREDIT",
      "save_card_data": false,
      "transaction_type": "FULL",
      "number_installments": 1,
      "dynamic_mcc": 6051,
      "wallet": {
        "type": "55",
        "id": "103",
        "tag": "AP",
        "authorization_token": "<BASE64_ENCODED_APPLE_PAY_PAYMENT_TOKEN>",
        "fund_transfer": {
          "pay_action": "FT",
          "receiver": {
            "account_number": "9999999999999995",
            "account_type": "00",
            "first_name": "Jane",
            "middle_name": "T",
            "last_name": "Smith",
            "addr_street": "1 Main ST",
            "addr_city": "SAO PAULO",
            "addr_state": "SP",
            "addr_country": "BRA",
            "addr_postal_code": "1408000",
            "nationality": "BRA",
            "phone": "5511977778888",
            "date_of_birth": "19901230",
            "id_type": "03",
            "id_num": "12345678900000"
          },
          "sender": {
            "account_number": "9999999999999995",
            "account_type": "00",
            "first_name": "Jane",
            "middle_name": "T",
            "last_name": "Smith",
            "addr_street": "1 Main ST",
            "addr_city": "SAO PAULO",
            "addr_state": "SP",
            "addr_country": "BRA",
            "addr_postal_code": "1408000",
            "nationality": "BRA",
            "phone": "5511977778888",
            "date_of_birth": "19901230",
            "id_type": "03",
            "id_num": "12345678900000"
          }
        }
      }
    }
  }
}

Example of SDWO Authorization Token response

json

{
  "idempotency_key": "ff9c7c47-22f4-437b-af20-1f227a6bcaae",
  "seller_id": "a9c99f03-025c-4261-a9f5-de73ef593623",
  "payment_id": "21911ab4-85c7-4906-a56c-d75c5b7ea185",
  "order_id": "e478c15e-fd0a-40f4-8b70-48233ca203bd",
  "amount": "1200",
  "currency": "BRL",
  "status": "APPROVED",
  "payment_method": "CREDIT",
  "received_at": "2026-04-08T17:14:54.000Z",
  "transaction_id": "MCC00CVZ20408",
  "original_transaction_id": "MCC00CVZ20408",
  "authorized_at": "2026-04-08T17:14:55.283Z",
  "reason_code": "00",
  "reason_message": "captured",
  "acquirer": "GETNET",
  "soft_descriptor": "EC TESTES PAGONXT - NA",
  "brand": "MASTERCARD",
  "authorization_code": "446201",
  "acquirer_transaction_id": "000018185087"
}

json

{
  "idempotency_key": "ff9c7c47-22f4-437b-af20-1f227a6bcaae",
  "seller_id": "a9c99f03-025c-4261-a9f5-de73ef593623",
  "payment_id": "21911ab4-85c7-4906-a56c-d75c5b7ea185",
  "order_id": "e478c15e-fd0a-40f4-8b70-48233ca203bd",
  "amount": "1200",
  "currency": "BRL",
  "status": "APPROVED",
  "payment_method": "CREDIT",
  "received_at": "2026-04-08T17:14:54.000Z",
  "transaction_id": "MCC00CVZ20408",
  "original_transaction_id": "MCC00CVZ20408",
  "authorized_at": "2026-04-08T17:14:55.283Z",
  "reason_code": "00",
  "reason_message": "captured",
  "acquirer": "GETNET",
  "soft_descriptor": "EC TESTES PAGONXT - NA",
  "brand": "MASTERCARD",
  "authorization_code": "446201",
  "acquirer_transaction_id": "000018185087"
}

Comparison Table

Use the table below to identify which technical fields are required for each Apple Pay processing scenario.

Scenario	Data handling	What merchant sends to Getnet	Card object	Tokenization object	Authorization token	3DS data	Wallet fields
DAN card data flow	Merchant / processor decrypts token	DAN + expiry	Required	No	No	Optional or required by country/configuration	`id=103`, `type=10`
DAN card data flow with 3DS	Merchant / processor decrypts token and performs 3DS	DAN + expiry + 3DS authentication fields	Required	No	No	Required	`id=103`, `type=10`
Cryptogram card data flow	Merchant / processor decrypts tokenized data	DAN + expiry + payment cryptogram + ECI	Required	Required	No	Usually not required	`id=103`, `type=10`
Authorization Token flow	Getnet processes token	Base64-encoded Apple Pay payment token	No	No	Required	Handled according to token content and configuration	`id=103`, `type=10`
SDWO card data flow	Merchant / processor decrypts token	DAN or cryptogram card data + fund transfer data	Required	Depends on scenario	No	Optional or required by configuration	`id=103`, `type=55`
SDWO Authorization Token flow	Getnet processes token	Base64-encoded Apple Pay payment token + fund transfer data	No	No	Required	Depends on token content and configuration	`id=103`, `type=55`, `tag=AP`

Note: Device Account Number, payment cryptogram, and pkPaymentToken are Apple Pay payment data concepts. The scenarios above describe how payment data is sent to Getnet in the server-side payment request.

Additional resources

On this page

Apple Pay™

Ecommerce

Card Present

Reference

Webhooks

Apple Pay™

How Apple Pay Works with Getnet

Integration Overview

Requirements

Integration Steps

Step 1: Integrate with Apple Pay

Step 2: Configure your Apple Pay account

Step 3: Validate the merchant session

Step 4: Process the payment

Merchant Validation

Backend request to Apple

Frontend handler

Backend example

Apple Pay payment data and Getnet processing models

Device Account Number

3DS for DAN transactions

Payment cryptogram

Authorization Token flow

Choosing a processing model

Decrypting the Apple Pay payment token

Payment acceptance

Cards

Billing address

Handling the Apple Pay payload

Integrate via Global API

Wallet field configuration

Characteristics

Available Features

Integration Flow

Transaction Flow Diagram

Flow Description

Server-Side Implementation Scenarios

DAN card data flow

Example of request

Example of response

DAN card data flow with 3DS

Example of DAN with 3DS request

Example of DAN with 3DS response

SDWO — Staged Digital Wallet Operator

Example of SDWO request

Example of SDWO response

SDWO with 3DS Transactions

Example of SDWO with 3DS request

Example of SDWO with 3DS response

Cryptogram card data flow

Example of request

Example of response

Authorization Token flow

Example of request

Example of response

SDWO Authorization Token flow

Example of SDWO Authorization Token request

Example of SDWO Authorization Token response

Comparison Table

Additional resources
